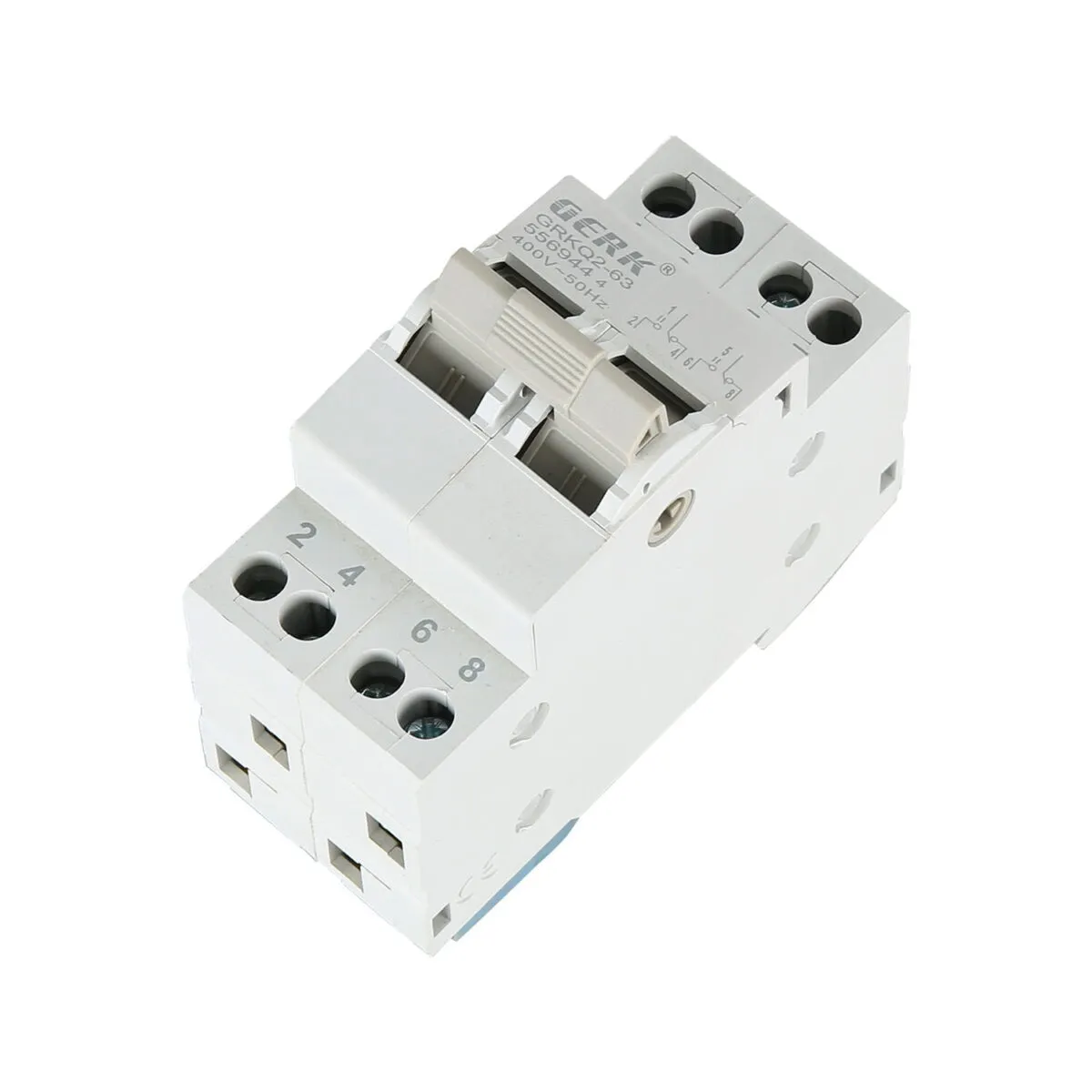

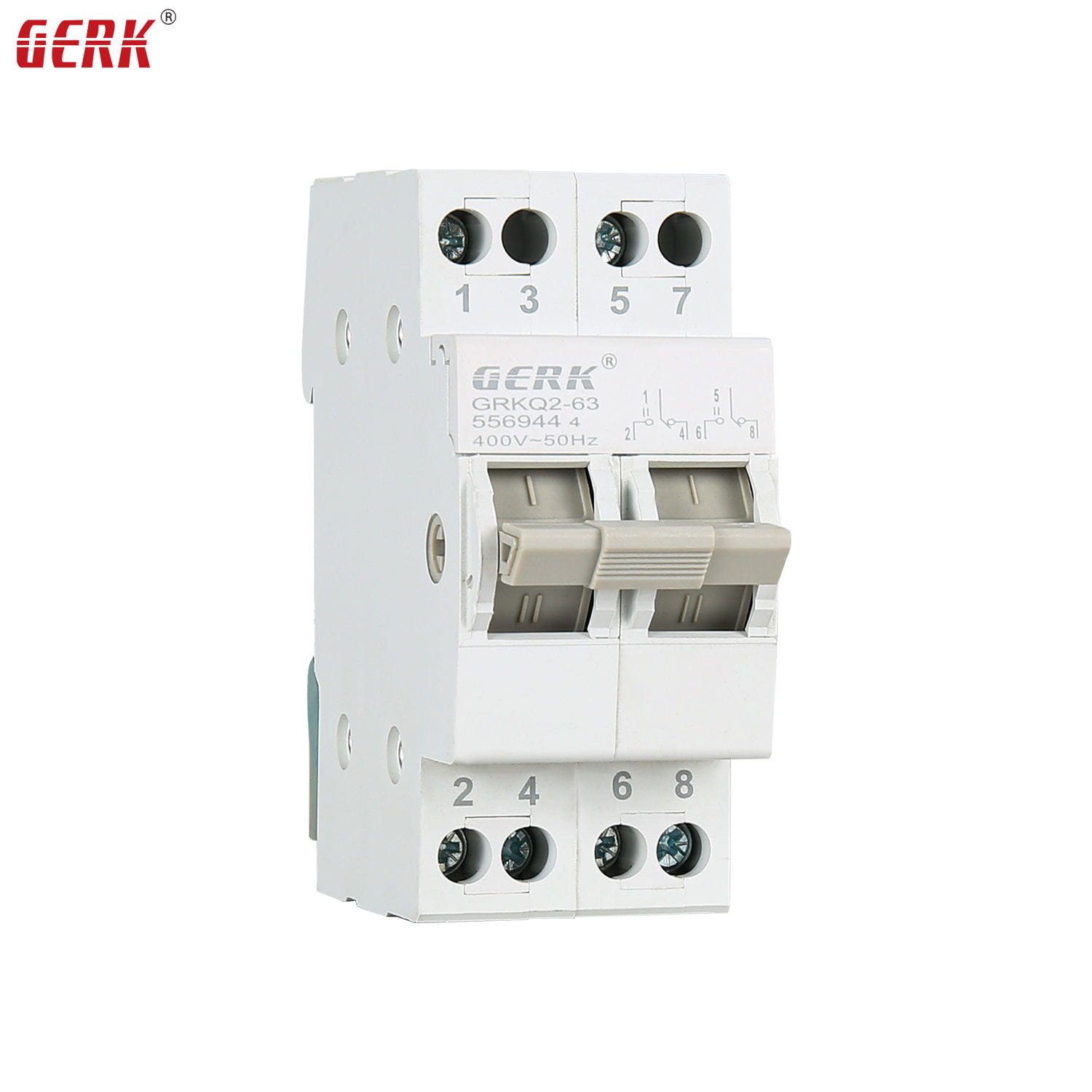

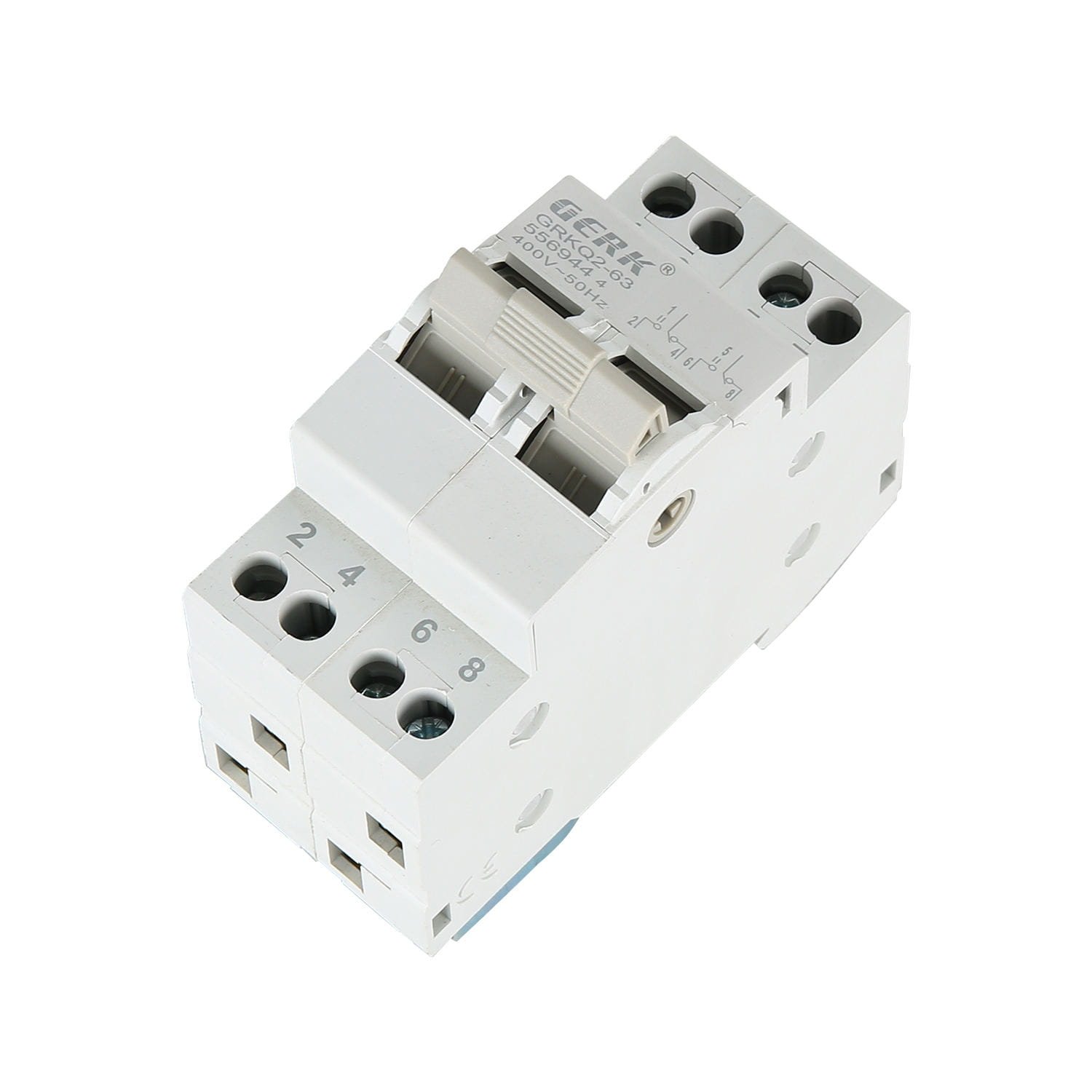

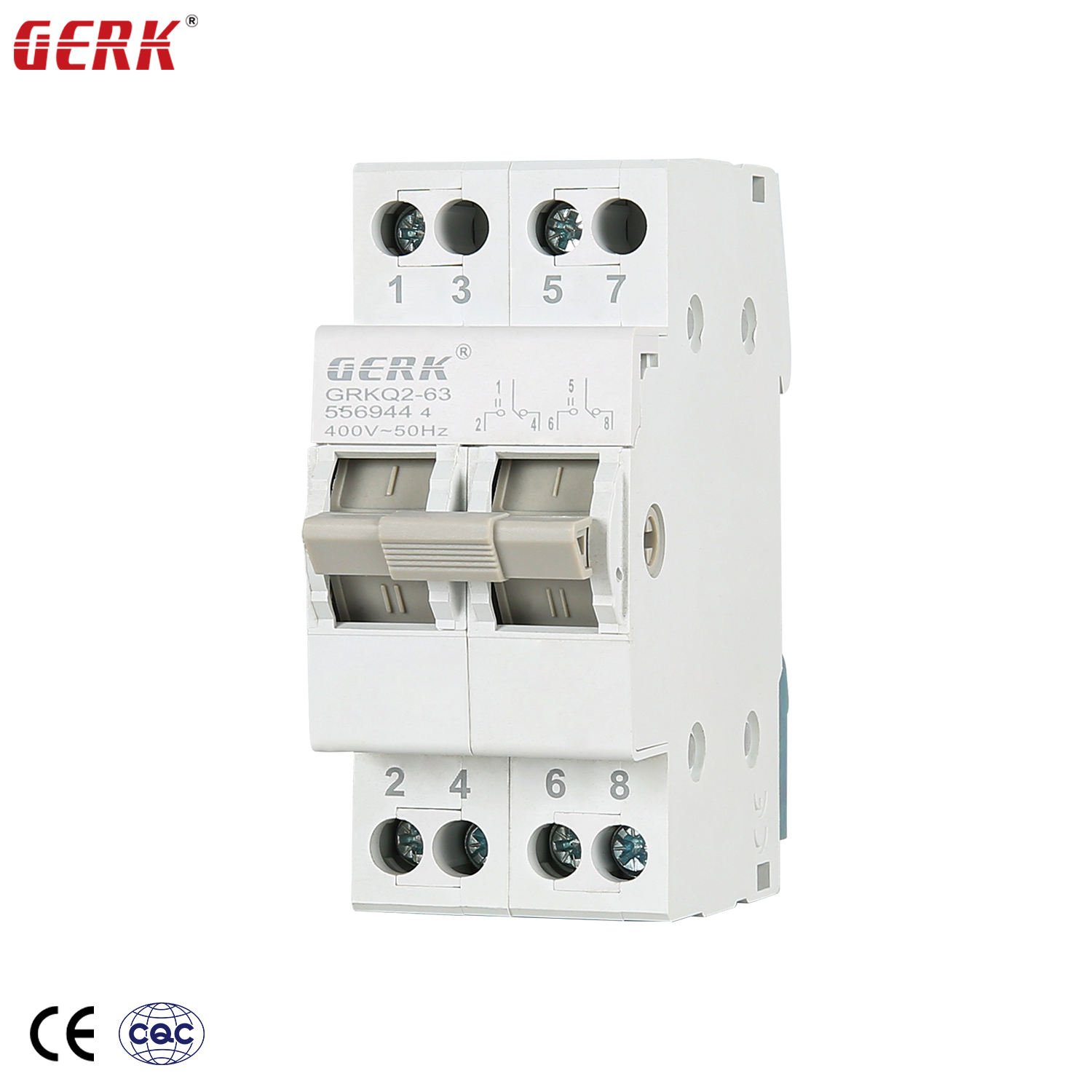

Dual Power Changeover (MTS) 63A, 400V AC Manual Transfer Switch
Original price was: 1,200৳ .800৳ Current price is: 800৳ .
Key Features
Model: MTS-63A
Type: Manual Transfer Switch (Dual Power)
Rated Current: 63A
Rated Voltage: 230V AC (1-Phase)
Rated Insulation Voltage: 690V
Electrical Life: ≥ 10,000 operations
Mechanical Life: ≥ 20,000 operations
Contact Material: Copper/Silver Alloy
Switch Type: ON–OFF–ON
Installation: Wall mount / Distribution board
Body Material: Flame-retardant ABS
Frequency: 50/60 Hz
Operating Temperature: -10°C ~ +55°C
Protection Level: IP20 (Indoor use)
Compliance: IEC Standards
Description
- High Current Rating: With a 63 Ampere capacity, it can safely manage significant electrical loads, suitable for various residential, commercial, and light industrial applications in Bangladesh.
- 4-Pole Design: Features a 4-pole configuration (3 phase + neutral), making it ideal for 3-phase 400V AC systems common in many Bangladeshi installations, ensuring complete isolation of all lines.
- Dual Power Changeover: Facilitates manual switching between two separate power sources, providing flexibility and control during power transitions.
- Robust Construction: Manufactured with high-quality, flame-retardant PC plastic material, ensuring enhanced safety and durability even in challenging environments.
- Mechanical Interlock: Incorporates a mechanical interlock mechanism to prevent simultaneous connection of both power sources, eliminating the risk of short circuits and ensuring safe operation.
- Visible Contact Status: Clear indication of the switch position (Source 1 or Source 2) allows for easy monitoring and verification of the active power source.
- Easy Installation: Designed for convenient 35mm DIN rail mounting or screw fixing, allowing for flexible installation in most standard distribution boards and enclosures.
- High Breaking Capacity: Engineered to withstand high short-circuit currents, offering superior protection to your electrical system.
- Long Mechanical and Electrical Life: Built for longevity with a mechanical life of 8000 cycles and an electrical life of 1500 cycles, ensuring reliable performance over many years.

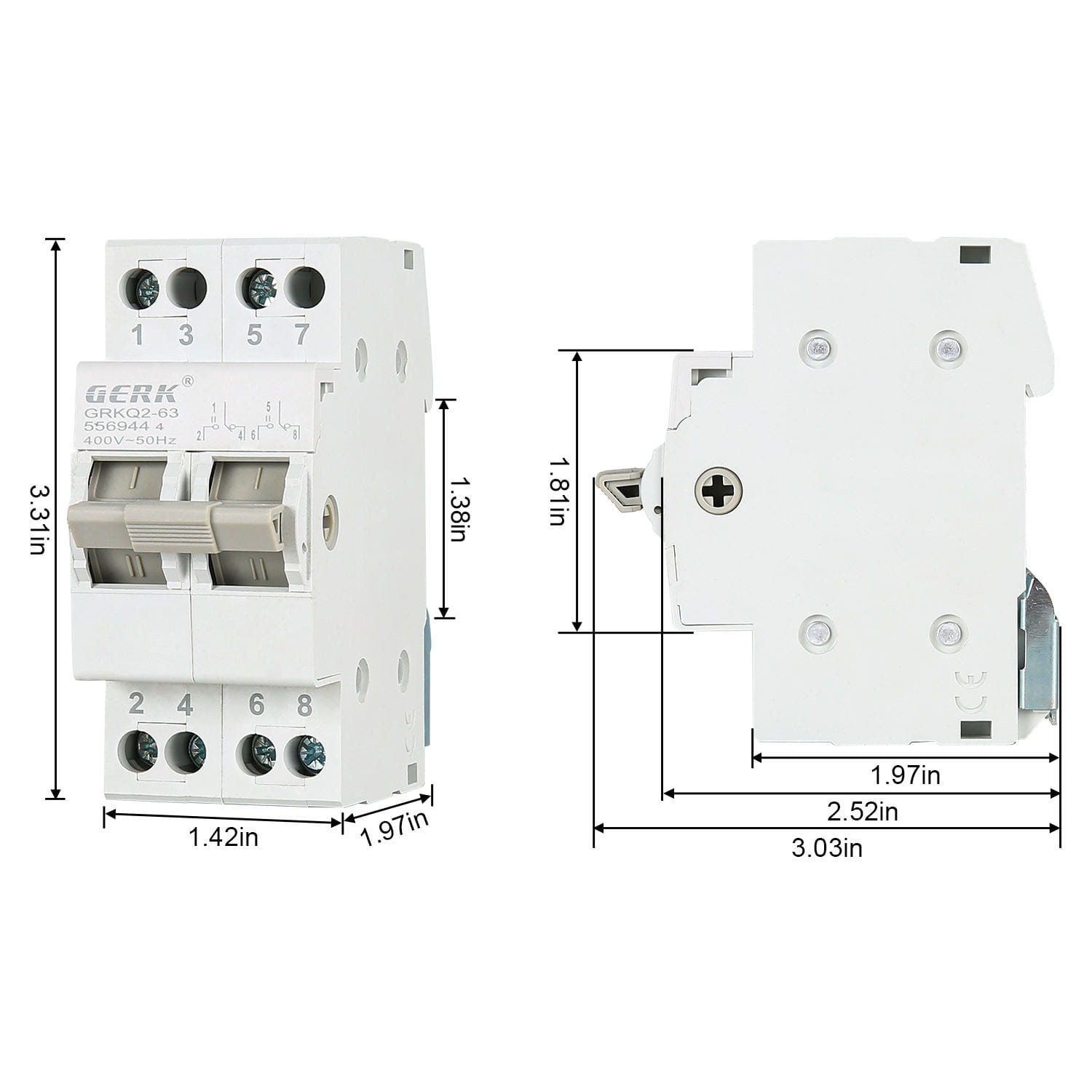

- Compact Design: Space-saving dimensions allow for efficient use of panel space, a crucial advantage in crowded electrical cabinets.
