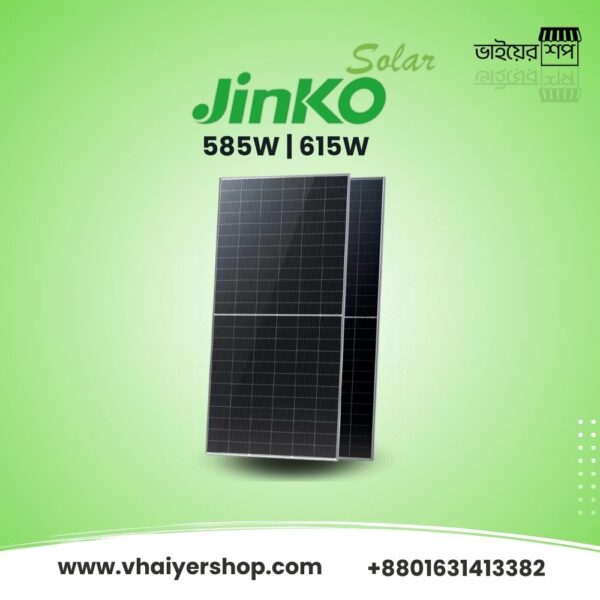

Jinko Bifacial 615W (Tiger Neo N-Type)
Jinko Bifacial 615W (Tiger Neo N-Type) 10,990৳
Click to enlarge
Brand:
Add to compare
Add to wishlist

AE Solar 700W Bifacial Panel

12,590৳

Specification

  • Model: AE_CMD-144BDS-700

  • Technology: N-Type TOPCon, Bifacial Double-Glass

  • Cell Type: Monocrystalline Half-Cut Cells

  • Number of Cells: 144 (72 × 2)

  • Maximum Power Output (Pmax): 700W

  • Module Efficiency: Up to 22.8%

  • Open Circuit Voltage (Voc): ~52.2V

  • Maximum Power Voltage (Vmp): ~44.6V

  • Short Circuit Current (Isc): ~17.2A

  • Maximum Power Current (Imp): ~15.7A

  • Bifaciality Factor: Up to 85% backside power gain

  • Total Equivalent Power (Pmax Equ): Up to ~910W (with backside contribution)

  • Dimensions: 2384 mm × 1303 mm × 35 mm

  • Weight: 36 kg

  • Frame: Anodized Aluminum Alloy

  • Glass: 2.0 mm High-Transparency Tempered Glass (both sides)

  • Junction Box: IP68 Rated (3 diodes)

  • Connector Type: MC4 Compatible

  • Operating Temperature Range: -40°C to +85°C

  • Maximum System Voltage: 1500V DC

  • Mechanical Load Capacity: 5400 Pa (snow), 2400 Pa (wind)

  • Certifications: IEC 61215, IEC 61730, IEC 61701 (Salt Mist), IEC 62716 (Ammonia), PID Free

  • Warranty: Product: 25 years, Performance: 30 years linear power output guarantee

Description

The AE Solar Bifacial 700W panel is designed for ultra-high performance and efficiency, making it ideal for large-scale solar projects as well as demanding commercial installations. With advanced N-Type TOPCon half-cut cells and double-glass bifacial technology, it captures sunlight from both the front and rear sides, providing up to 30% additional energy gain compared to standard panels. Its robust build ensures exceptional durability against harsh weather conditions, while its high module efficiency helps reduce overall system costs by generating more power from fewer panels.
